TRACK AND TRACE - SERIALIZATION

We offer a wide range of devices for serialization on various packaging elements.

CPC – Folding box print and verification system

The system is designed for printing and verifying the print quality on the formed folding boxes Depending on the specific needs of the customer, they can be equipped with various modules.

General information:

  • Capacity up to 300 products / min
  • Compact design
  • Quick device setup with a minimal number of format parts
  • Capability to integrate inkjet or laser printers
  • Capability to automatically adjust the device with servo motors
  • OCR/OCV verification of printed text and GS1 grading of 1D/2D codes
  • Rejection of incompliant products (1 or more ejection bins)
  • The device can be used standalone or as part of a packing line
  • Interface for communication with higher-level systems (Track&Trace servers, Recipe systems, LDAP…)
  • Devices are compliant with FDA guidelines “21 CFR part 11”

TRACK & TRACE

The basic software of the device can be enhanced with the Track &Trace module, which quickly adapts to current market regulations (Europe, USA, Russia, Japan, China etc.).

General information:

  • Support of numerical and alphanumeric product identification numbers (serialisation)
  • HRT Printing and verification (OCR/OCV, pattern tracking) for numerous global markets
  • Code printing and verification (GS1 code grading) e.g. datamatrix code, 1D code, China 1D code, Russian crypto code, Japanese databar code
  • The device is a line controller and is connectable with sub-devices in case of a Track&Trace aggregation process
  • – When changing batches, it is possible to switch to different kinds of aggregation devices (CP, MCLS, MCS) which are installed in the production line

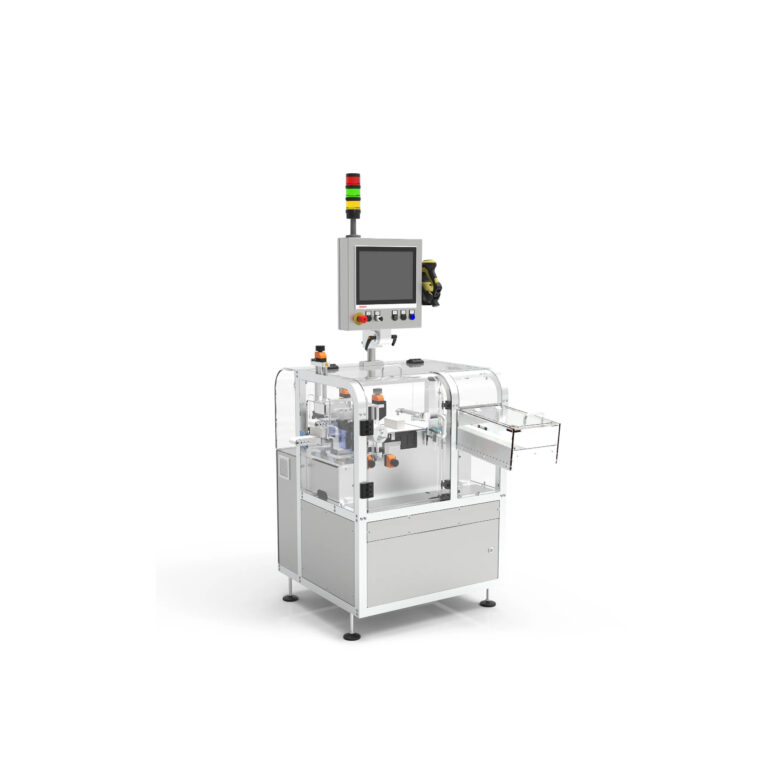

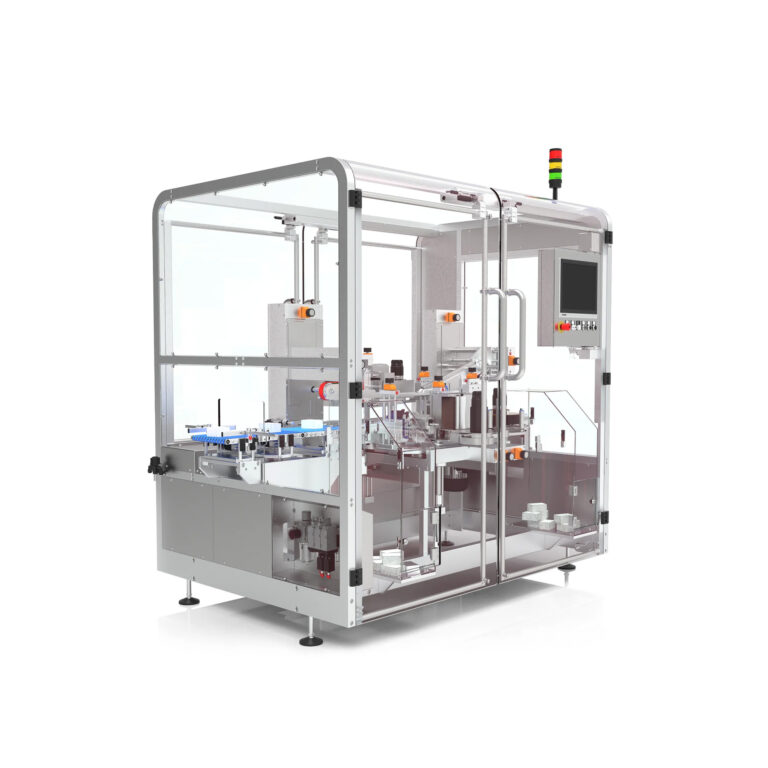

CPC M largeCPC2200 400 large
CPC-MCPCCPC2200-400
Device features
Printing and print verifiyingicon table check blackicon table check blackicon table check black
Labels (printing, print control and application)icon table cross blackicon table check blackicon table check black
Application of safety labelsicon table cross blackicon table cross blackicon table check black
Weighingicon table check blackicon table check blackicon table check black
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 0,5 kVA
In = 2,2A
I = 6A		Main power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 0,9 kVA
In = 4A
I = 6A		Main power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 2,3 kVA
In = 10A
I = 16A
UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 0,92 kVA
In = 4A
I = 6A		Main power supply:*
Un = 400V+N+PE
f = 50/60Hz
P = 5 kW
In = 7A
I = 10A		UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 1,3 kW
In = 6A
I = 10A
Air supply:
p = 6bar
ΦV = 5 L/min		UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 1,3 kW
In = 6V
I = 10A		Air supply:
p = 6bar
ΦV = 20 L/min
Air supply:
p = 6bar
ΦV = 20 L/min
* in the case of a laser printer
Device dimensions
(length x width x height) [mm]		950 x 1150 x 20001650 x 1200 x 23002200 x 1600 x 2300
Device weight [kg]200 – 500750 – 1000750 – 1250
Documents
Document name

FPPV – Flat pack print and verify system

The device is designed for printing and performing print control on unformed packaging elements. The device’s feeding mechanism supplies packaging elements from the hopper to the transport system, where the material code inspection, printing, and product control are carried out. Incompliant products are rejected into the rejection bin.

General information:

  • Capacity up to 100 pcs/min
  • Extremely compact and mobile design – length 1500mm
  • Quick device setup with a minimal number of format parts
  • Inkjet printer
  • OCR/OCV verification of printed text and GS1 grading of 1D/2D codes
  • Ejection of incompliant products
  • Additional code reader for material code control
  • Input hopper up to a height of 600 mm
  • Used as a standalone device
  • Interface for communication with higher-level systems (Track&Trace servers, LDAP…)
  • Devices are compliant with FDA guidelines “21 CFR part 11”

TRACK & TRACE

The basic software of the device can be enhanced with the Track &Trace module, which quickly adapts to current market regulations (Europe, USA, Russia, Japan, China etc.).

General information:

  • Support of numerical and alphanumeric product identification numbers (serialisation)
  • HRT Printing and verification (OCR/OCV, pattern tracking) for numerous global markets
  • Code printing and verification (GS1 code grading) e.g. datamatrix code, 1D code, China 1D code, Russian crypto code, Japanese databar code
  • The device is a line controller and is connectable with sub-devices in case of a Track&Trace aggregation process
  • When changing batches, it is possible to switch to different kinds of aggregation devices (CP, MCLS, MCS) which are installed in the production line

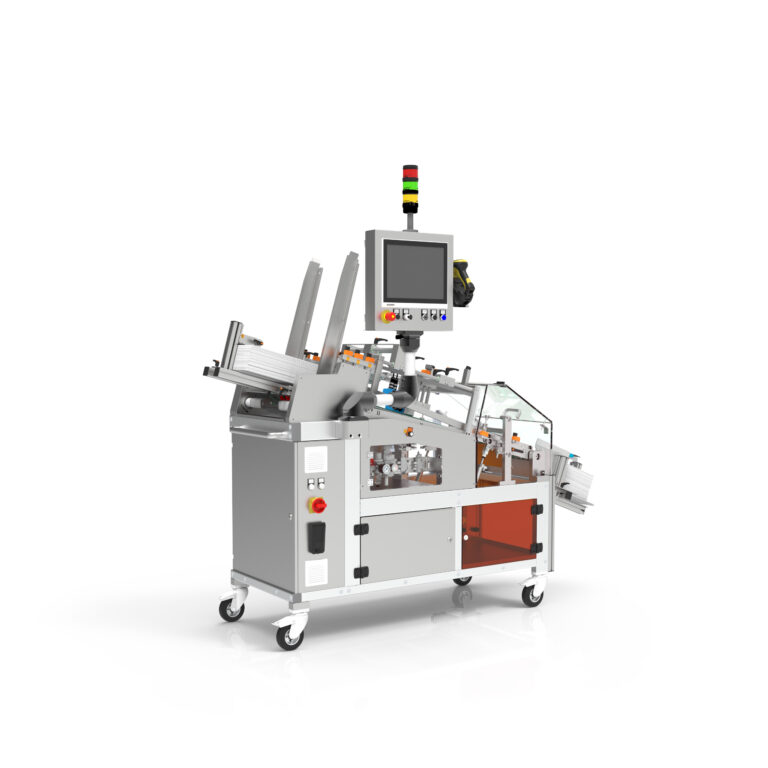

FPPV large
FPPV
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 0,5 kVA
In = 2,2A
I = 6A
Air supply:
p = 6bar
ΦV = 50 L/min
Device dimensions
(length x width x height) [mm]		1755 x 760 x 2150
Device weight [kg]200 – 300
Minimum product dimensions
(length x height x depth) [mm]		40 x 0,2 x 50
Maximum product dimensions
(length x height x depth) [mm]		408 x 15 x 400
Documents
Document name

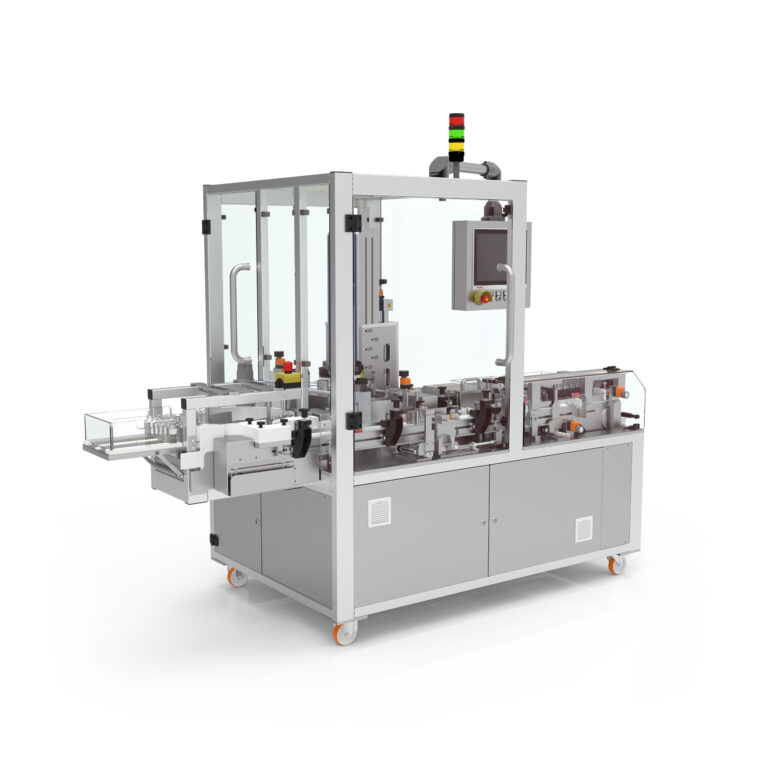

VLS – Vial labelling system

The labeling device is designed for the labelling of vials. The device has an integrated labeling unit that each product with a label. Printer is used to print label content, which is verified by the camera. In case of incompliant printing, the label is then rejected on the rejection cylinder. In case label is unsuccessfully applied to the product, the product is transported to the rejection bin.

General information:

  • Capacity up to 100 pcs/min
  • Compact design 2000mm
  • Quick device setup with a minimal number of format parts
  • Possibility of mobile design
  • Integration of laser, thermal transfer, or inkjet printers
  • Used as a standalone device
  • Rejection of vials with incompliant labeling or improper cap
  • Accumulation table at the machine infeed for feeding products into the main part of the device
  • Customized device outfeed for filling into dedicated trays
  • Control of presence and color of caps
  • Interface for communication with higher-level systems (Track&Trace servers, Recipe systems, LDAP…)
  • Devices are compliant with FDA guidelines “21 CFR part 11”
VLS large
VLS
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 2,3 kVA
In = 10A
I = 16A
Air supply:
p = 6bar
ΦV = 10 L/min
Device dimensions
(length x width x height) [mm]		2500 x 1100 x 2150
Device weight [kg]400 – 700
Minimum product dimensions
(length x height x depth) [mm]		35 x 16 (2R)
Maximum product dimensions
(length x height x depth) [mm]		73 x 40 (50R)
Documents
Document name

TRACK AND TRACE - AGGREGATION

We offer a wide range of devices for manual and automatic aggregation of products up to the pallet level.

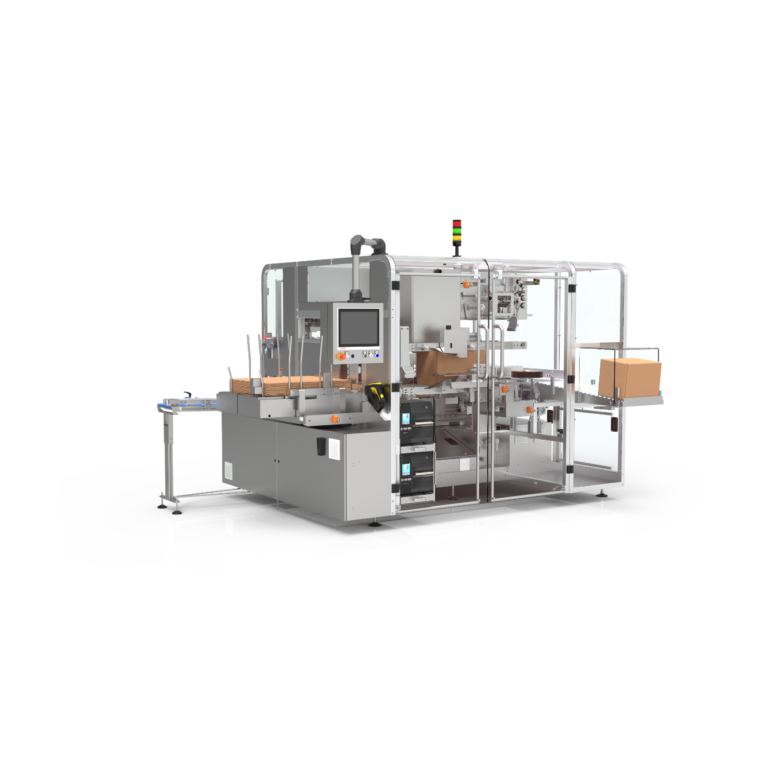

CP – Case packer

The case packer family is designed for fully automated filling of products (folding boxes, bottles, bundles) into transport cartons. Products are collected from the infeed belt, stacked into levels and levels are filled into transport boxes. The system checks transport box fullness with either cameras and/or vacuum suckers. The process is continued with transport box flap closing and glueing with adhesive tape. Finaly transport case labels are printed, applied and verified. The system allows pallet label printing and manual pallet aggregation.

Optionally, a palletizer can be connected to the system. Palletizer enables fully automated transport carton stacking and pallet label print&application.

General information:

  • Capacity up to 300 products per minute, depending on stacking configuration
  • Quick device setup with a minimal number of format parts
  • The input hopper allows for a stock of approximately 50 transport boxes
  • Possibility of adjusting positions and length of output lines
  • Ejection of incompliant products
  • Use of thermotransfer printers for printing transport labels
  • Fullness check of transport boxes with vacuum suckers and/or camera
  • Possibility of connecting a palletizer to the output of the device
  • Indirect communication with higher-level systems (Track&Trace servers, Recipe systems) via line controller
  • Interface for communication with higher-level systems (LDAP)
  • Devices are compliant with FDA guidelines “21 CFR part 11”

TRACK & TRACE

The basic software of the device can be enhanced with the Track &Trace module, which quickly adapts to current market regulations (Europe, USA, Russia, Japan, China etc.).

Specifications:

  • Aggregation of products/bundles into transport boxes based on decoding codes (e.g. datamatrix code, 1D code, Chinese 1D code, Russian crypto code) printed on products/bundles
  • Aggregation of transport boxes into pallets
  • Automated printing, application, and presence control of transport labels for transport boxes
  • Printing of pallet labels and presence control with a handheld code reader
  • Automated printing, application, and presence control of pallet labels in case of use of a palletizer
  • The device is connectable with a line controller (main device)
CP3200 400 in CP3600 600 largeCP3200 400 in CP3600 600 large
CP3200-400CP3600-600
Device features
Filling transport boxesSideSide
Product type-folding boxes
-bundles		-folding boxes
-bundles
Specifications
Supply specificationsMain power supply:
Un = 3x400V+N+PE
f = 50/60Hz
P = 12 kVA
In = 17,3A
I = 20A		Main power supply:
Un = 3x400V+N+PE
f = 50/60Hz
P = 12 kVA
In = 17,3A
I = 20A
Main power supply:*
Un = 400V+N+PE
f = 50/60Hz
P = 29 kVA
In = 41,9A
I = 50A		Main power supply:*
Un = 400V+N+PE
f = 50/60Hz
P = 29 kVA
In = 41,9A
I = 50A
UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 2,2 kW
In = 9,6V
I = 16A		UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 2,2 kW
In = 9,6V
I = 16A
Air supply:
p = 6bar
ΦV = 200 L/min		Air supply:
p = 6bar
ΦV = 200 L/min
Air supply:*
p = 6bar
ΦV = 400 L/min
* when using palletizer		Air supply:*
p = 6bar
ΦV = 400 L/min
* when using palletizer
Device dimensions
(length x width x height) [mm]		3500 x 2600 x 24004000 x 2600 x 2400
Device dimensions with pallet [mm]5300 x 2800 x 26005800 x 2800 x 2600
Device weight [kg]1750 – 20001750 – 2000
Minimum product dimensions
(length x height x depth) [mm]		45 x 20 x 7045 x 20 x 70
Minimum product dimensions
(length x height x depth) [mm]		110 x 110 x 170110 x 110 x 170
Maximum product dimensions
(length x height x depth) [mm]		320x180x180320x180x180
Maximum dimension of transport boxes
(length x width x height) [mm]		410x350x350600x400x400
Documents
Document name

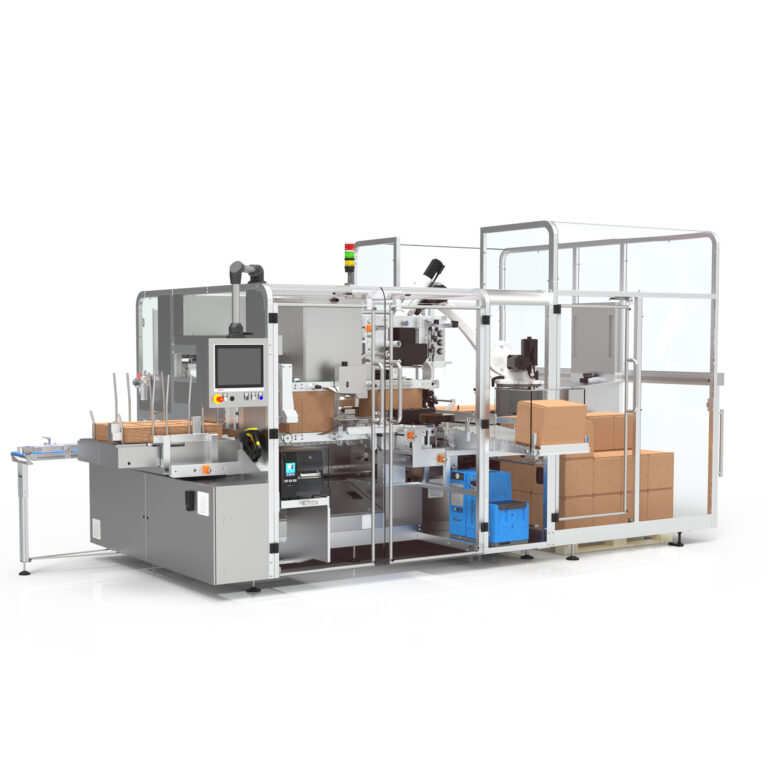

PL – Palletizer

The palletizer is a casepacker sub-device. The palletizer is connected to the output of the case packer and enables an automated palletizing process including transport case – pallet aggregation. The palletizer has two pallet positions. Robotic arm is positioned between them and allows for various configurations of stacking transport boxes onto pallets. During transport box stacking anti-slip adhesive can be applied to each transport box or anti-slip sheet can be used between each pallet layer to ensure pallet stiffness during transport. When pallet stacking is complete, pallet label is printed and applied with the Robotic arm.

General information:

  • Controlled with casepacker screen or additional screen od the palletizer
  • Possibility of exchanging good pallets during operation
  • The inside of the pallet reader is protected by a security scanner, which prevents the possibility of an operator being present in the device during operation
  • Flexible configuration of folding switches to a pallet
  • Possibility of communication with a upper-level system (via collection card)
PL large
PL
Specifications
Supply specificationsMain power supply:
Un = 400V+N+PE
f = 50/60Hz
P = 29 kVA
In = 41,9A
I = 50A
Air supply:
p = 6bar
ΦV = 400 L/min
Device dimensions
(length x width x height) [mm]		1800 x 2800 x 2600
Device weight [kg]500
Minimum product dimensions
(length x height x depth) [mm]		320x180x180
Maximum product dimensions
(length x height x depth) [mm]		600x400x400
Documents
Document name

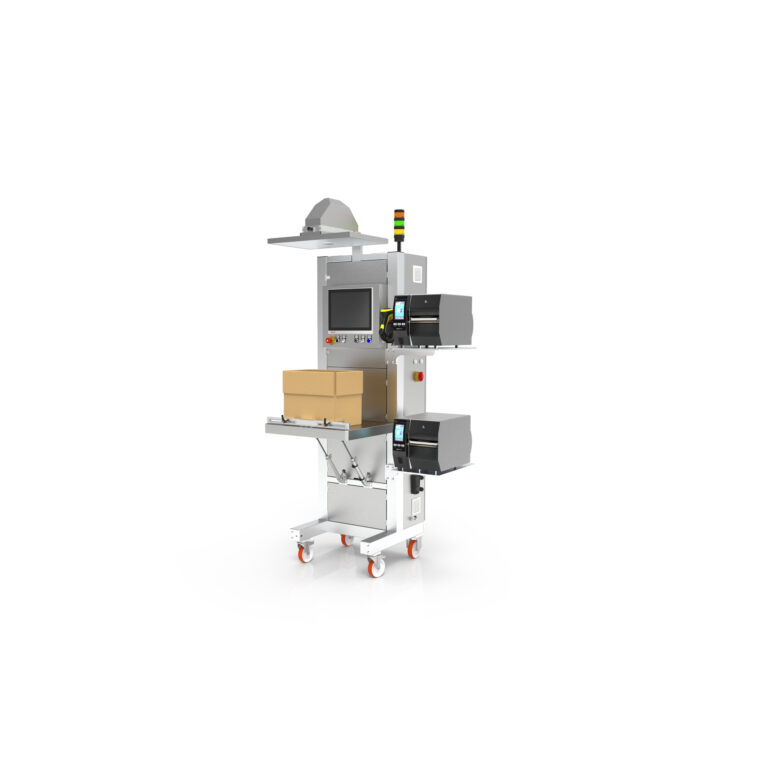

MCLS – Manual aggregation system

The Manual Aggregation Station is designed for the aggregation of folding boxes into transport boxes or other storage containers. The operator takes the folding boxes from the accumulation belt/table and manually places them into the transport boxes. Upon each layer completion, a high-resolution camera installed at the top of the device, captures an image of all stacked folding boxes verifying the content of printed codes. When transport box is full the device enables label printing for both transport boxes and pallets.

The Manual Aggregation Station is suitable for aggregating folding boxes that have printed codes on the side facing the top of the transport box. When printing is done on different side or different secondary packaging is used, we offer the universal aggregation device MCS.

Specifications:

  • Suitable for lower capacities (up to 60 products/minute)
  • Quick device setup
  • Simple system without format parts, suitable for a wide range of products
  • The device can be mobile (on wheels) or built into the line
  • Can be used in combination with an accumulation table
  • Control of fullness of transport boxes/storage containers up to a width of 600 mm
  • Possibility of automatic pneumatic inclination of transport boxes for easier filling
  • Indirect communication with higher-level systems (Track&Trace servers, Recipe systems) via line controller
  • Interface for communication with higher-level systems (LDAP)
  • Devices are compliant with FDA guidelines “21 CFR part 11”

TRACK & TRACE

The basic software of the device includes the Track&Trace module, which promptly adapts to current market regulations (Europe, USA, Russia, Japan, China etc.).

Specifications:

  • Aggregation of products/bundles into transport boxes based on decoding codes (e.g. datamatrix code, 1D code, Chinese 1D code, Russian crypto code) stamped on products/bundles
  • Aggregation of transport boxes into pallets
  • Printing of transport case and pallet labels and presence control with a manual code reader
  • The device is connectable with a line controller (main device)
MCLS large
MCLS
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 2,3 kVA
In = 10A
I = 16A
Air supply:
p = 6bar
ΦV = 20 L/min
Device dimensions
(length x width x height) [mm]		1120 x 1000 x 2500
Device weight [kg]200 – 300
Minimum product dimensions
(length x height x depth) [mm]		40 x 17 x 50
Maximum product dimensions
(length x height x depth) [mm]		200 x 150 x 200
Documents
Document name

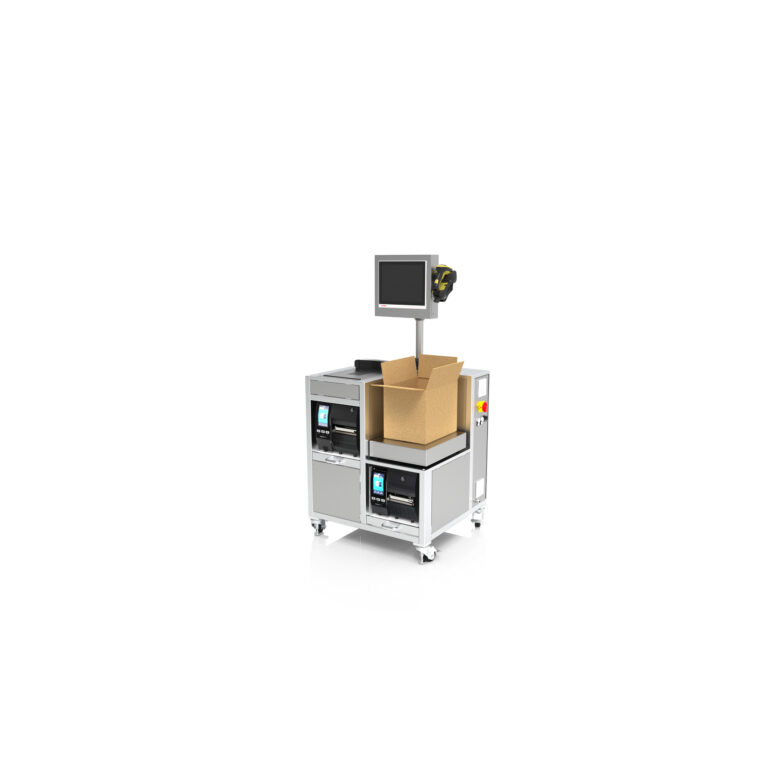

MCS – Universal aggregation system

The universal aggregation station is designed for aggregating leaflets into transport boxes (switches) or into other containers for stored products. It is used for products of standard or non-standard (large leaflets, wallets, etc.) shapes, regardless of which side the data is stamped. From the reservoir / table, the operator takes products, scans them on the device, and then invests in transport boxes. The fullness of transport boxes is controlled by the number of scanned products. Upon completion of filling the transport boxes, the device allows you to print labels for transport boxes and pallets.

General information:

  • Suitable for smaller lower capacities
  • A simple system that has no format parts and no settings and is suitable for a very wide range of products
  • The device can be mobile (on wheels) or built into the line
  • The possibility of an additional weighing module for checking the fullness of the transport box. Possibility of changing the reference weight and quantity of products in the transport box via the user interface
  • Indirect communication with higher-level systems (Track&Trace servers, Recipe systems) via line controller
  • Interface for communication with higher-level systems (LDAP)
  • Devices are compliant with FDA guidelines “21 CFR part 11”

TRACK & TRACE

The basic software of the device can be enhanced with the Track &Trace module, which quickly adapts to current market regulations (Europe, USA, Russia, Japan, China etc.).

Specifications:

  • Aggregation of products/bundles into transport boxes based on decoding codes (e.g. datamatrix code, 1D code, Chinese 1D code, Russian crypto code) stamped on products/bundles
  • Aggregation of transport boxes into pallets
  • Printing of transport case and pallet labels and presence control with a manual code reader
  • The device is connectable with a line controller (main device)
MCS large
MCS
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 0,5 kVA
In = 2A
I = 6A
Device dimensions
(length x width x height) [mm]		815 x 830 x 1800
Device weight [kg]200 – 300
Minimum product dimensions
(length x height x depth) [mm]		40 x 17 x 50
Maximum product dimensions
(length x height x depth) [mm]		200 x 150 x 200
Documents
Document name

DEVICES FOR EQUIPPING PRODUCTS

We offer devices for equipping a variety of products.

CPC – Folding box print and verification system

The system is designed for printing and verifying the print quality on the formed folding boxes Depending on the specific needs of the customer, they can be equipped with various modules.

General information:

  • Capacity up to 300 products / min
  • Compact design
  • Quick device setup with a minimal number of format parts
  • Capability to integrate inkjet or laser printers
  • Capability to automatically adjust the device with servo motors
  • OCR/OCV verification of printed text and GS1 grading of 1D/2D codes
  • Rejection of incompliant products (1 or more ejection bins)
  • The device can be used standalone or as part of a packing line
  • Interface for communication with higher-level systems (Track&Trace servers, Recipe systems, LDAP…)
  • Devices are compliant with FDA guidelines “21 CFR part 11”

TRACK & TRACE

The basic software of the device can be enhanced with the Track &Trace module, which quickly adapts to current market regulations (Europe, USA, Russia, Japan, China etc.).

General information:

  • Support of numerical and alphanumeric product identification numbers (serialisation)
  • HRT Printing and verification (OCR/OCV, pattern tracking) for numerous global markets
  • Code printing and verification (GS1 code grading) e.g. datamatrix code, 1D code, China 1D code, Russian crypto code, Japanese databar code
  • The device is a line controller and is connectable with sub-devices in case of a Track&Trace aggregation process
  • – When changing batches, it is possible to switch to different kinds of aggregation devices (CP, MCLS, MCS) which are installed in the production line
CPC M largeCPC2200 400 large
CPC-MCPCCPC2200-400
Device features
Printing and print verifiyingicon table check blackicon table check blackicon table check black
Labels (printing, print control and application)icon table cross blackicon table check blackicon table check black
Application of safety labelsicon table cross blackicon table cross blackicon table check black
Weighingicon table check blackicon table check blackicon table check black
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 0,5 kVA
In = 2,2A
I = 6A		Main power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 0,9 kVA
In = 4A
I = 6A		Main power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 2,3 kVA
In = 10A
I = 16A
UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 0,92 kVA
In = 4A
I = 6A		Main power supply:*
Un = 400V+N+PE
f = 50/60Hz
P = 5 kW
In = 7A
I = 10A		UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 1,3 kW
In = 6A
I = 10A
Air supply:
p = 6bar
ΦV = 5 L/min		UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 1,3 kW
In = 6V
I = 10A		Air supply:
p = 6bar
ΦV = 20 L/min
Air supply:
p = 6bar
ΦV = 20 L/min
* in the case of a laser printer
Device dimensions
(length x width x height) [mm]		950 x 1150 x 20001650 x 1200 x 23002200 x 1600 x 2300
Device weight [kg]200 – 500750 – 1000750 – 1250
Documents
Document name

FPPV – Flat pack print and verify system

The device is designed for printing and performing print control on unformed packaging elements. The device’s feeding mechanism supplies packaging elements from the hopper to the transport system, where the material code inspection, printing, and product control are carried out. Incompliant products are rejected into the rejection bin.

General information:

  • Capacity up to 100 pcs/min
  • Extremely compact and mobile design – length 1500mm
  • Quick device setup with a minimal number of format parts
  • Inkjet printer
  • OCR/OCV verification of printed text and GS1 grading of 1D/2D codes
  • Ejection of incompliant products
  • Additional code reader for material code control
  • Input hopper up to a height of 600 mm
  • Used as a standalone device
  • Interface for communication with higher-level systems (Track&Trace servers, LDAP…)
  • Devices are compliant with FDA guidelines “21 CFR part 11”

TRACK & TRACE

The basic software of the device can be enhanced with the Track &Trace module, which quickly adapts to current market regulations (Europe, USA, Russia, Japan, China etc.).

General information:

  • Support of numerical and alphanumeric product identification numbers (serialisation)
  • HRT Printing and verification (OCR/OCV, pattern tracking) for numerous global markets
  • Code printing and verification (GS1 code grading) e.g. datamatrix code, 1D code, China 1D code, Russian crypto code, Japanese databar code
  • The device is a line controller and is connectable with sub-devices in case of a Track&Trace aggregation process
  • When changing batches, it is possible to switch to different kinds of aggregation devices (CP, MCLS, MCS) which are installed in the production line
FPPV large
FPPV
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 0,5 kVA
In = 2,2A
I = 6A
Air supply:
p = 6bar
ΦV = 50 L/min
Device dimensions
(length x width x height) [mm]		1755 x 760 x 2150
Device weight [kg]200 – 300
Minimum product dimensions
(length x height x depth) [mm]		40 x 0,2 x 50
Maximum product dimensions
(length x height x depth) [mm]		408 x 15 x 400
Documents
Document name

VLS – Vial labelling system

The labeling device is designed for the labelling of vials. The device has an integrated labeling unit that each product with a label. Printer is used to print label content, which is verified by the camera. In case of incompliant printing, the label is then rejected on the rejection cylinder. In case label is unsuccessfully applied to the product, the product is transported to the rejection bin.

General information:

  • Capacity up to 100 pcs/min
  • Compact design 2000mm
  • Quick device setup with a minimal number of format parts
  • Possibility of mobile design
  • Integration of laser, thermal transfer, or inkjet printers
  • Used as a standalone device
  • Rejection of vials with incompliant labeling or improper cap
  • Accumulation table at the machine infeed for feeding products into the main part of the device
  • Customized device outfeed for filling into dedicated trays
  • Control of presence and color of caps
  • Interface for communication with higher-level systems (Track&Trace servers, Recipe systems, LDAP…)
  • Devices are compliant with FDA guidelines “21 CFR part 11”
VLS large
VLS
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 2,3 kVA
In = 10A
I = 16A
Air supply:
p = 6bar
ΦV = 10 L/min
Device dimensions
(length x width x height) [mm]		2500 x 1100 x 2150
Device weight [kg]400 – 700
Minimum product dimensions
(length x height x depth) [mm]		35 x 16 (2R)
Maximum product dimensions
(length x height x depth) [mm]		73 x 40 (50R)
Documents
Document name

PACKING DEVICES

We offer devices for packaging a variety of products.

CP – Case packer

The case packer family is designed for fully automated filling of products (folding boxes, bottles, bundles) into transport cartons. Products are collected from the infeed belt, stacked into levels and levels are filled into transport boxes. The system checks transport box fullness with either cameras and/or vacuum suckers. The process is continued with transport box flap closing and glueing with adhesive tape. Finaly transport case labels are printed, applied and verified. The system allows pallet label printing and manual pallet aggregation.

Optionally, a palletizer can be connected to the system. Palletizer enables fully automated transport carton stacking and pallet label print&application.

General information:

  • Capacity up to 300 products per minute, depending on stacking configuration
  • Quick device setup with a minimal number of format parts
  • The input hopper allows for a stock of approximately 50 transport boxes
  • Possibility of adjusting positions and length of output lines
  • Ejection of incompliant products
  • Use of thermotransfer printers for printing transport labels
  • Fullness check of transport boxes with vacuum suckers and/or camera
  • Possibility of connecting a palletizer to the output of the device
  • Indirect communication with higher-level systems (Track&Trace servers, Recipe systems) via line controller
  • Interface for communication with higher-level systems (LDAP)
  • Devices are compliant with FDA guidelines “21 CFR part 11”

TRACK & TRACE

The basic software of the device can be enhanced with the Track &Trace module, which quickly adapts to current market regulations (Europe, USA, Russia, Japan, China etc.).

Specifications:

  • Aggregation of products/bundles into transport boxes based on decoding codes (e.g. datamatrix code, 1D code, Chinese 1D code, Russian crypto code) printed on products/bundles
  • Aggregation of transport boxes into pallets
  • Automated printing, application, and presence control of transport labels for transport boxes
  • Printing of pallet labels and presence control with a handheld code reader
  • Automated printing, application, and presence control of pallet labels in case of use of a palletizer
  • The device is connectable with a line controller (main device)
CP3200 400 in CP3600 600 largeCP3200 400 in CP3600 600 large
CP3200-400CP3600-600
Device features
Filling transport boxesSideSide
Product type-folding boxes
-bundles		-folding boxes
-bundles
Specifications
Supply specificationsMain power supply:
Un = 3x400V+N+PE
f = 50/60Hz
P = 12 kVA
In = 17,3A
I = 20A		Main power supply:
Un = 3x400V+N+PE
f = 50/60Hz
P = 12 kVA
In = 17,3A
I = 20A
Main power supply:*
Un = 400V+N+PE
f = 50/60Hz
P = 29 kVA
In = 41,9A
I = 50A		Main power supply:*
Un = 400V+N+PE
f = 50/60Hz
P = 29 kVA
In = 41,9A
I = 50A
UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 2,2 kW
In = 9,6V
I = 16A		UPS feed:
Un = 230V+N+PE
f = 50/60Hz
P = 2,2 kW
In = 9,6V
I = 16A
Air supply:
p = 6bar
ΦV = 200 L/min		Air supply:
p = 6bar
ΦV = 200 L/min
Air supply:*
p = 6bar
ΦV = 400 L/min
* when using palletizer		Air supply:*
p = 6bar
ΦV = 400 L/min
* when using palletizer
Device dimensions
(length x width x height) [mm]		3500 x 2600 x 24004000 x 2600 x 2400
Device dimensions with pallet [mm]5300 x 2800 x 26005800 x 2800 x 2600
Device weight [kg]1750 – 20001750 – 2000
Minimum product dimensions
(length x height x depth) [mm]		45 x 20 x 7045 x 20 x 70
Minimum product dimensions
(length x height x depth) [mm]		110 x 110 x 170110 x 110 x 170
Maximum product dimensions
(length x height x depth) [mm]		320x180x180320x180x180
Maximum dimension of transport boxes
(length x width x height) [mm]		410x350x350600x400x400
Documents
Document name

IWS – In-wallet sealing system

The device is designed for automated filling of blisters into wallets. The operator loads blisters and wallets at the device’s hopper. The device feeds blisters from the hopper onto the input rotary table. A vacuum gripper then takes the blister packs from the input rotary table and places them in the wallet hopper. Vacuum gripper then takes a wallet along with blister to the output rotary table and it checks the material code during transfer. Products with incompliant material codes are rejected into the rejection bin. On the output rotary table, the device checks the presence of the wallet and appropriate blister. Incompliant products are rejected into rejection bin. Finally, the device folds the products, welds them using a welding plate, and transfers them to the output belt.

General information:

  • Capacity up to 40 wallets/min
  • Compact design – length 2500mm
  • Support for single and double wallets
  • Control of inserted blister packs
  • Control of wallet material code
  • Possibility of hot welding
  • Adjustable welding force and temperature
  • Possibility of integrating the device into the production line or as a standalone device
  • Interface for communication with higher systems (Recipe systems, LDAP…)
  • Adaptable device according to the needs of the client
  • Devices are compliant with FDA guidelines “21 CFR part 11”
IWS
Specifications
Supply specificationsMain power supply:
Un = 3x400V+N+PE
f = 50/60Hz
P = 9,6 kW
In = 13,6A
I = 16A
Air supply:
p = 6bar
ΦV = 250 L/min
Device dimensions
(length x width x height) [mm]		3760 x 1400 x 2100
Device weight [kg]1250 – 1750
Minimum product dimensions
(length x height x depth) [mm]		If necessary by the contracting authority/entity
Maximum product dimensions
(length x height x depth) [mm]		If necessary by the contracting authority/entity
Documents
Document name

IWS-F – In-wallet sealing and forming system

The device is designed for automated filling of blisters into wallets. The operator loads blisters and wallets at the device’s hopper. The device takes the wallets from the hopper using a vacuum gripper and checks the pre-printed material code during transfer to the nest. Wallets with inappropriate material code are discarded into the rejection bin. Compliant wallet travels to the next station, where the gripper takes the blister packs from the hopper and checks the pre-printed material code during transfer to the nest. Products with incompliant material codes are rejected into the rejection bin. In the next two steps, the closing and welding of wallets are carried out. Variable content is printed on the welded wallets using an inkjet printer, which is then verified with a camera. At the output station, the transfer of wallets to the output belt is carried out, where the final formation of the wallet is performed.

General information:

  • Capacity up to 20 wallets/min
  • Control of material code on wallets and blisters
  • Support for single-piece wallets
  • Possibility of cold and hot welding
  • Adjustable welding force and temperature
  • Possibility of printing and print control on wallets
  • Automatic formation of wallets
  • Possibility of integrating the device into the production line or as a standalone device
  • Interface for communication with higher systems (Recipe systems, LDAP…)
  • Adaptable device according to the needs of the client
  • Devices are compliant with FDA guidelines “21 CFR part 11”
IWS-F
Specifications
Supply specificationsMain power supply:
Un = 3x400V+N+PE
f = 50/60Hz
P = 9,1 kW
In = 13,1A
I = 16A
Air supply:
p = 6bar
ΦV = 500 L/min
Device dimensions
(length x width x height) [mm]		2650 x 2800 x 2250
Device weight [kg]1500 – 2000
Minimum product dimensions
(length x height x depth) [mm]		If necessary by the contracting authority/entity
Maximum product dimensions
(length x height x depth) [mm]		If necessary by the contracting authority/entity
Documents
Document name

CONTROL SYSTEMS

We offer control systems for various packaging elements.

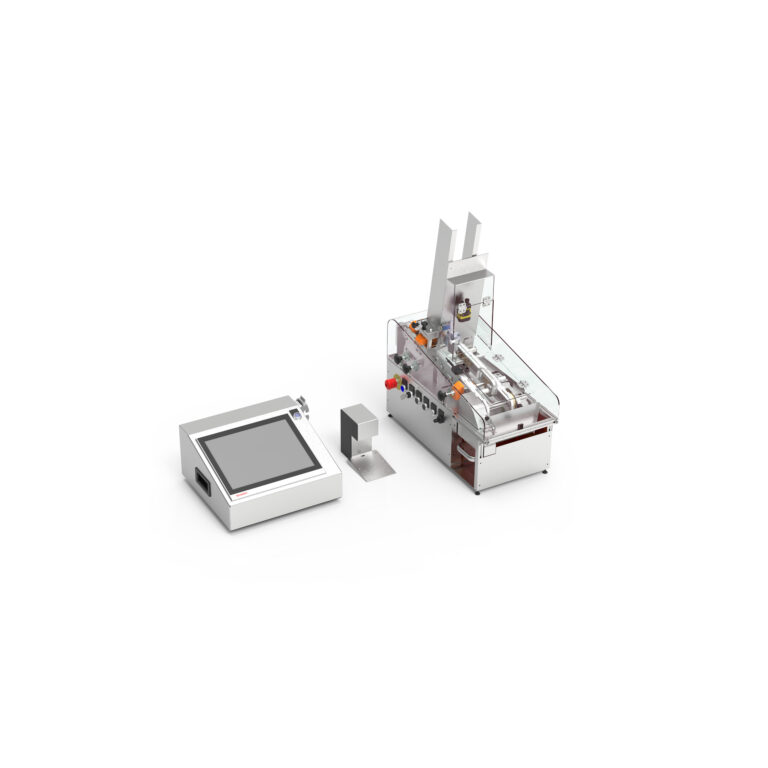

CC-100 – Tabletop material code control system

The device is designed for manual control of the material code on various packaging elements. The system can be expanded with additional sub-devices depending on the type of controlled packaging elements.

General information:

  • Tabletop version – portable from room to room
  • Quick and easy exchange of sub-devices
  • Interface for communication with higher systems (Recipe systems, LDAP…)
  • Devices are compliant with FDA guidelines “21 CFR part 11”
CC 100 large
CC-100
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 0,32 kW
In = 1,4A
I = 6A
Device weight [kg]15 – 20
Documents
Document name

BFCS – Booklet material code control system

The system is intended to control the material code on folded instructions (booklets).

General information:

  • The capacity is up to 20m/min (100 instructions per minute)
  • The device is on wheels, allowing for easy transport from room to room
  • Code reader for material code control
  • The device has sergers for different formats of folded instructions
  • Format parts (hoppers) for different formats of folded instructions
  • Interface for communication with higher systems (Recipe system, LDAP)
BFCS
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 0,32 kW
In = 1,4A
I = 6A
Device dimensions
(length x width x height) [mm]		1100 x 550 x 2080
Device weight [kg]150 – 300
Minimum product dimensions
(length x height x depth) [mm]		38 x 3 x 77
Maximum product dimensions
(length x height x depth) [mm]		51 x 12 x120
Documents
Document name

FV- Flat pack material code control system

The device is designed to perform print control on unformed packaging elements. The device’s feeding mechanism supplies packaging elements from the hopper to the transport system, where the material code inspection, printing, and product control are carried out. Incompliant products are rejected into the rejection bin.

General information:

  • Capacity up to 20m/min
  • The device is on wheels, allowing for easy transport from room to room
  • Code reader for material code control
  • Input storage tank of unformed products up to a height of 600 mm unformed leaflets
  • Possibility of connecting a sub-device at the outlet (conveyor, storage tank)
  • Interface for communication with higher systems (Recipe system, LDAP)
FPPV large
FV
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 2,1 kVA
In = 9A
I = 16A
Air supply:
p = 6bar
ΦV = 50 L/min
Device dimensions
(length x width x height) [mm]		1755 x 760 x 2150
Device weight [kg]200 – 300
Minimum product dimensions
(length x height x depth) [mm]		40 x 0,2 x 50
Maximum product dimensions
(length x height x depth) [mm]		408 x 15 x 400
Documents
Document name

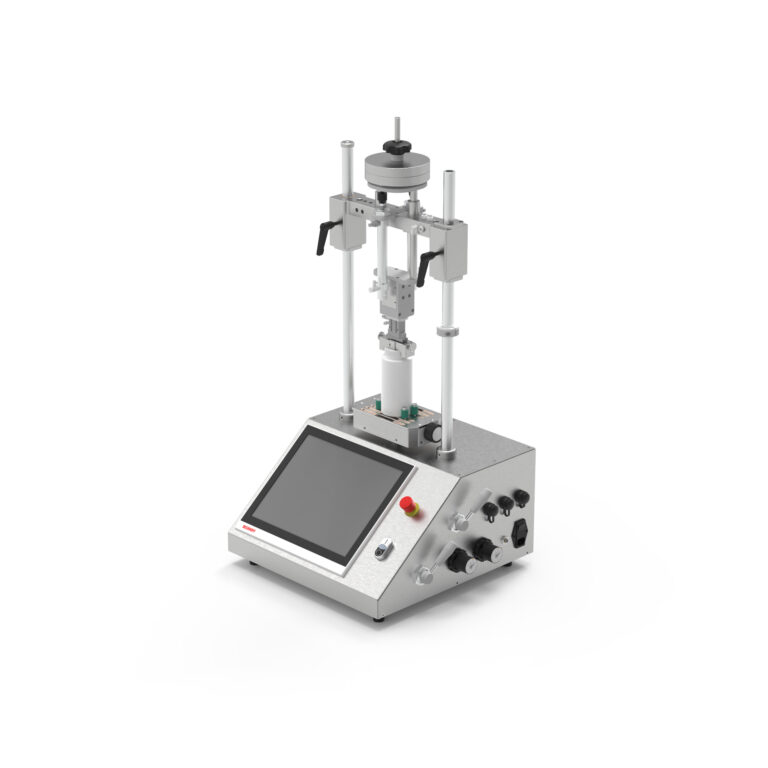

BTT – Bottle torque measuring system

The Torque Measurement Device is designed for periodic control of cap closure on bottles.

General information:

  • 100% measurement accuracy
  • Adjustable speed of measurement execution
  • Tabletop device, which can be transported from room to room
  • Support for testing various containers – minimal amount of necessary format parts
  • Interface for communication with higher systems (Recipe system, LDAP)
BTT large
BTT
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 375 VA
In = 1,63A
I = 4A
Air supply:
p = 6bar
ΦV = 2 L/min
Device dimensions
(length x width x height) [mm]		500 x 400 x 750
Device weight [kg]20 – 30
Minimum product dimensions
(length x height x depth) [mm]		Caps:
10 x 30
Plastic widow:
30 x 35
Maximum product dimensions
(length x height x depth) [mm]		Caps:
40 x 60
Plastic widow:
150 x 100
Documents
Document name

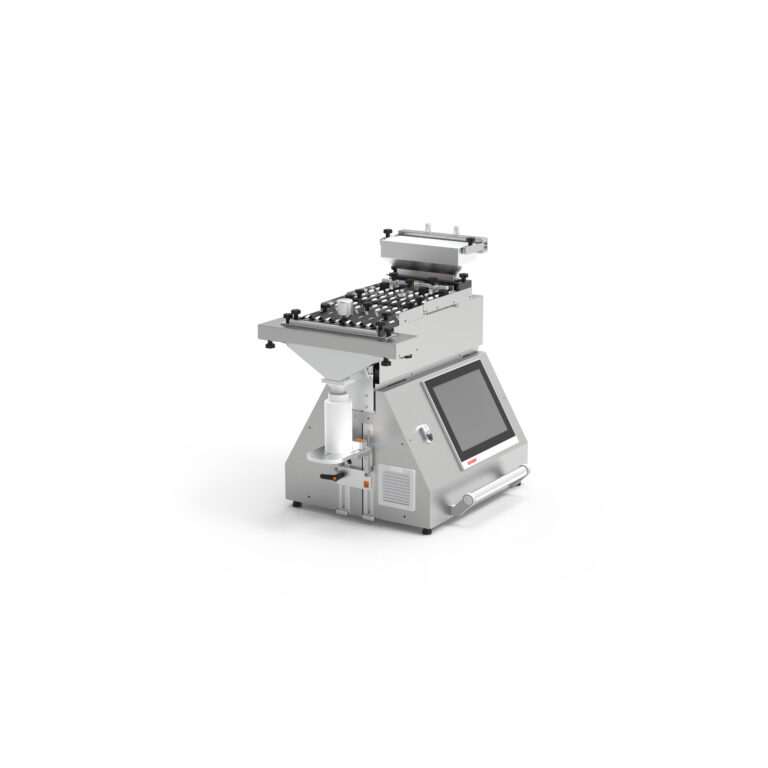

TC -Tablet counting system

The Tablet Counter is designed for periodic control of the accuracy of the number of tablets in a bottle. Tablets are poured into input hopper, counted and then ejected to device output.

General information:

  • 100% counting accuracy
  • Option to order 2, 4, 6, or 8 line counter
  • 8 lines counter speed is up to 1600 tablets per minute (depending on tablet size)
  • Input hopper, where the tablets intended for counting are loaded
  • Adjustable device speed
  • Tabletop device, which can be transported from room to room
  • Interface for communication with higher systems (Recipe system, LDAP)
TC large
TC
Specifications
Supply specificationsMain power supply:
Un = 230V+N+PE
f = 50/60Hz
P = 1,4 kVA
In = 6A
I = 10A
Device dimensions
(length x width x height) [mm]		700 x 500 x 700
Device weight [kg]20 – 40
Minimum product dimensions
(length x height x depth) [mm]		As required by the client*
Maximum product dimensions
(length x height x depth) [mm]		As required by the client*
Documents
Document name

CUSTOM SOLUTIONS

Our key advantage is providing personalized attention to each and every customer. We offer both customization of existing devices and development of new solutions tailored to the production process.

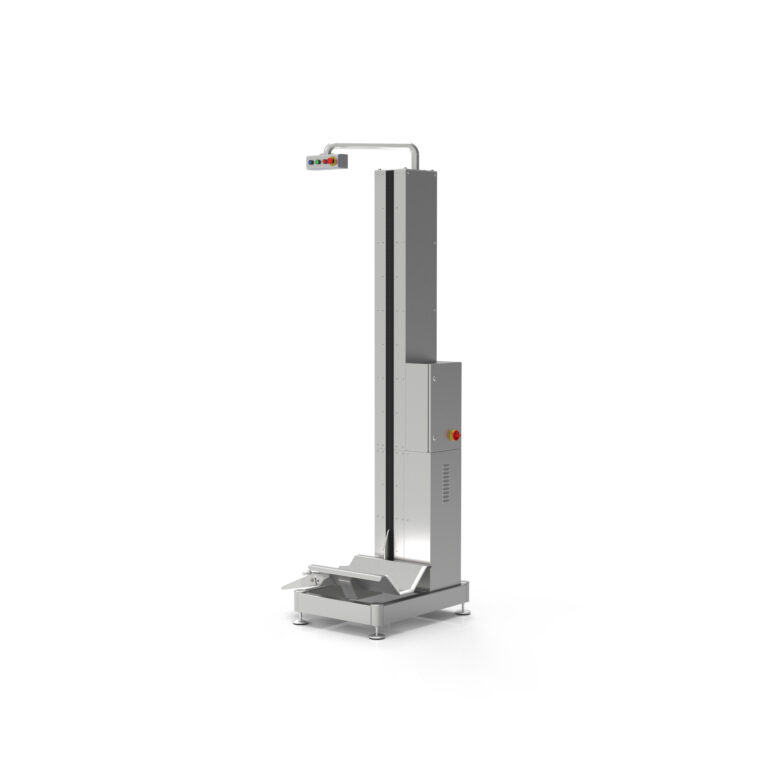

Elevators

The device is designed for the automated lifting of barrels or containers to a certain height, enabling the user to easily transfer the contents of the barrels or containers into the device’s hoppers.

General information:

  • The device operates as a standalone unit
  • The device contains only electrical components, so it does not require a compressed air supply
  • The possibility of adjusting the final lifting height according to production needs
  • The possibility of adjusting the surface of the lifting table according to production needs
  • The possibility of raised platform, through which the user can access the lifting table in the upper position
  • Device control buttons are available in two places (at the electrical cabinet and platform)
Manipulator large
ELEVATORS
Specifications
Supply specificationsMain power supply:
Un = 400V+N+PE
f = 50/60Hz
P = 2 kVA
In = 2,9A
I = 10A
Device dimensions
(length x width x height) [mm]		700 – 1250 x 700 – 1250 x 2600 – 3100
Device weight [kg]100 – 200
Load capacityup to 100 kg
Documents
Document name

SERVICES

With our professional services, we provide reliable solutions tailored to your needs.

More information

POŠLJI POVPRAŠEVANJE

logo color

SEND INQUIRY
